IBM Power System S824L

Povratak na:

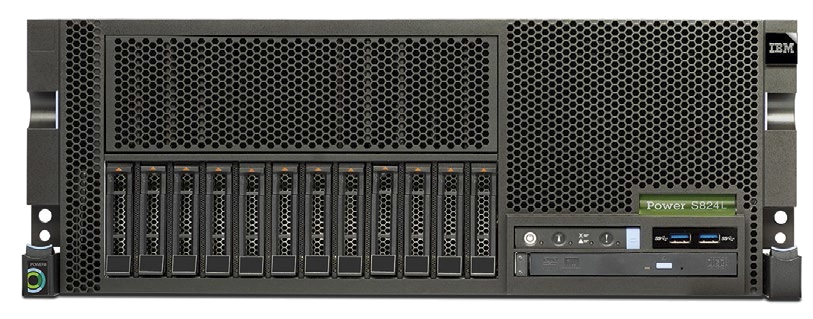

824L_transparent
Revolutionize IT with the first server to leverage OpenPOWER Foundation technology to dramatically accelerate Java, big data and technical computing applications
Offload highly parallel operations to a GPU accelerator and boost workload performance
Help realize competitive advantages at a lower cost


Processor and Memory

  • Microprocessors (with GPU installed) Two 10-core 3.42 GHz POWER8 processor cards or Two 12-core 3.02 GHz POWER8 processor cards
  • Microprocessors (available when no GPU installed and run on PowerVM) One or Two 8-core 4.15 GHz POWER8 processor cards or
    Two 12-core 3.52 GHz POWER8 processor cards
  • Level 2 (L2) cache 512 KB L2 cache per core
  • Level 3 (L3) cache 8 MB L3 cache per core
  • Level 4 (L4) cache 16 MB per DIMM
  • Memory Min/Max 16 GB, 32 GB, 64 GB and 128 GB 1600 MHz DDR3 module,32 GB to 2 TB
  • Processor-to-memory bandwidth 192 GBps per socket

Storage and I/O

  • Standard backplane 12 small form factor (SFF) bays for Hard Disk Drive (HDD)
  • With dual IOA higher function backplane (available when no GPU installed and run on PowerVM) 18 SFF bays for HDD/SSD plus 8 1.8-inch bays for SSD
  • Media bays One slim line DVD
  • Integrated SAS Controller Standard RAID 0, 5, 6,10
  • Adapter slots Included one x8 PCIe slots must contain a 1 Gb Ethernet LAN available for client use
  • Eleven PCIe Gen3 slots: four x16 plus seven PCIe Gen3 x 8
  • Up to Two NVIDIA adapters available
  • Two CAPI adapters per processor module
  • I/O Bandwidth 96 GBps per socket
