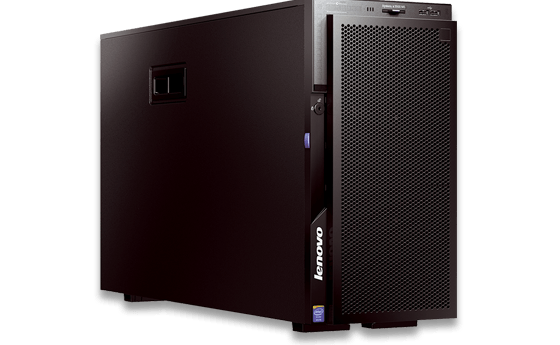

System x3500 M5

Povratak na: system-x3500-m5

lenovo-servers-towers-system-x-x3500-m5-main_transparent

Big Performance & Storage Flexibility in a Small Footprint

  • Optimize your workloads with choice of flexible storage-based configurations, designed for infrastructure basics to business-critical applications
  • Maximize uptime and minimize costs with industry-leading reliability features and tools.
  • Safeguard enterprise data with built-in System x® Trusted Platform Assurance, an exclusive set of security features and practices, plus optional self-encrypting drives and IBM Security Key Lifecycle Manager or MegaRAID SafeStore encryption services, which is part of any M5200 Series RAID-5 upgrade.
  • Achieve superior performance with Intel® Xeon® processors E5-2600 v3 series (up to 36 cores per server), end-to-end 12 Gbps RAID support─for both devices and infrastructure
  • Accelerate your graphics applications with up to two 300 W GPUs
  • Run up to 131 percent greater java workload performance1, up to 61 percent greater virtualization performance2, and up to 59 percent greater database performance3 per system than the previous generation
  • Leverage tiered storage by using both high-performance 2.5-inch solid-state drives (SSDs) and large-capacity, less-frequently-accessed 3.5-inch hard disk drive (HDD) storage in the same server
  • Reduce data center costs with smart energy-efficient features, including extended operating temperature, Titanium power supplies (up to 96 percent efficiency), active/standby* power supply modes, and TruDDR4™ Memory (with up to 45 percent improved energy use compared to DDR3)4
  • Run more virtual machines and workloads with up to 50 percent more cores and cache and 2x more memory capacity than previous generation
Description Specifications
FORM FACTOR/HEIGHT
Tower (5U rack-mountable)
PROCESSOR
Up to two 18-core Intel Xeon processors E5-2600 v3 series
CACHE
Up to 45 MB per processor
MEMORY
Up to 1.5 TB with 64 GB* TruDDR4 Memory LRDIMMs
EXPANSION SLOTS
Up to seven PCIe 3.0 expansion slots; support for up to two 300 W GPUs
DISK BAYS
Up to 32 2.5-inch hot-swap hard disk drives (HDDs) or solid-state drives (SSDs), or up to 12 3.5-inch hot-swap HDDs or 6 3.5-inch simple-swap HDDs, or a combination of up to 16 2.5-inch hot-swap HDDs/SSDs with up to 6 3.5-inch hot-swap HDDs
MEDIA BAYS
DVD-ROM and optional tape drive
NETWORK INTERFACE
Quad-port Gigabit Ethernet and single-port IMM standard; optional 10 GbE PCIe adapters available
POWER SUPPLY
1/2 hot-swap redundant 550 W/750 W/900 W, 80 PLUS Platinum or 750 W 80 PLUS Titanium
Description Specifications
HOT-SWAP COMPONENTS
Power supply, cooling fans and HDDs/SSDs
RAID SUPPORT
12 Gbps hardware dual RAID adapters -0, -1, -10 with optional RAID-5, -50, -6, -60 upgrades
ENERGY-EFFICIENCY COMPLIANCE
80 PLUS Platinum, 80 PLUS Titanium; ENERGY STAR compliance (model dependent)
SYSTEMS MANAGEMENT
IMM2 with dedicated management port (optional remote presence); Predictive Failure Analysis, Diagnostic LEDs, light path diagnostics, IBM Systems Director and IBM Systems Director Active Energy Manager
OPERATING SYSTEMS SUPPORTED
Microsoft Windows Server , Red Hat Enterprise Linux, SUSE Linux Enterprise, VMware vSphere – (Optional USB Key or SD Media Adapter*)
LIMITED WARRANTY
3-year customer replaceable unit and onsite limited warranty, next business day 9×5, service upgrades available
